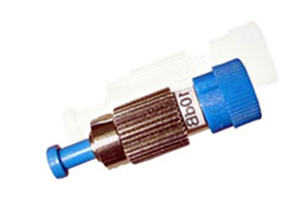

Atenuador FC, Monomodo UPC

Main description:

Thermally stable and repeatable, Lighthouse Fiber attenuators are 100% optically tested and chemically resistant to alcohol cleaning and treatment. Using and proprietary method of attenuation, a return loss of 24dB or better is obtainable. These Non-Air-Gap attenuators are ideal for applications where the requirement for low return loss is not as critical and price is a consideration.

Specifications:

• Attenuations Levels (+/-1.5dB): 1dB, 2dB, 3dB, …30dB (1-30dB)
• Return Loss (PC): more than or equal to 50dB
• Return Loss (APC): more than or equal to 65dB
• Operating Temperature: -50℃ to +85℃
• Repeatability: +/- 0.60dB
• Thermal Stability: +/-0.50dB
• Stable Through: 250 mating
